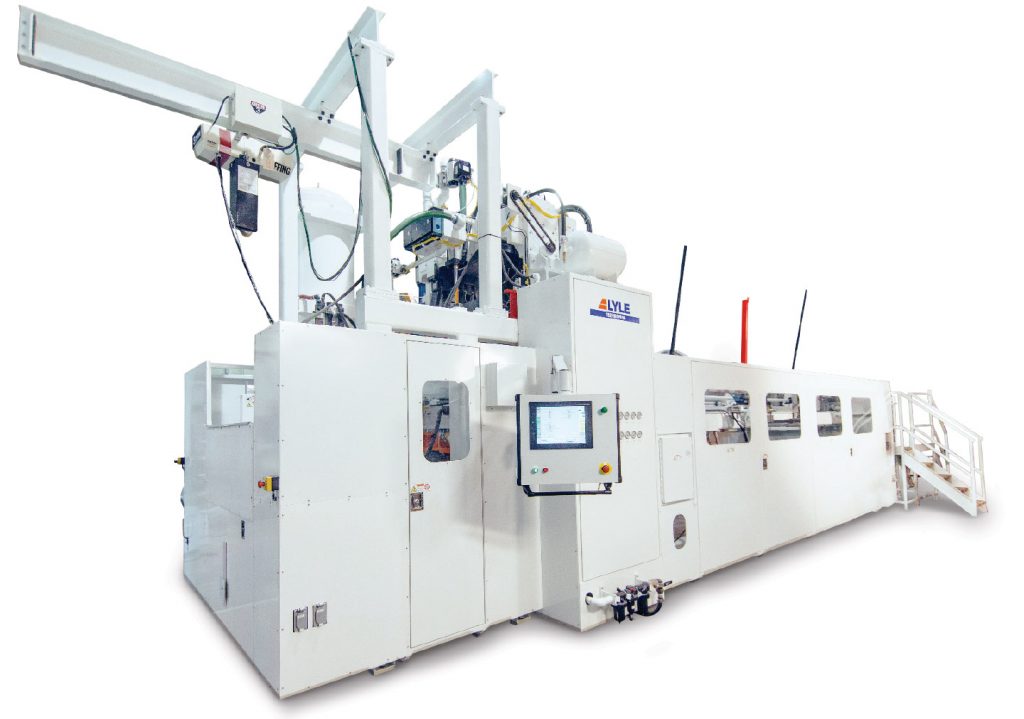

LYLE® FM-SERIES THERMOFORMERS
EFFICIENCY, SPEED AND RELIABILITY IN A VERSATILE CONTINUOUS THERMOFORMER
The FM-Series offers high speed, economical and reliable performance with an infinite array of options for a variety of forming applications. Two moving platens (top and bottom) guided on precision linear bearings allow parts to be formed up or down as required, optimizing material distribution and part weight reduction. The FM-Series features powerful and precise servo platen drives and is available in a wide range of sizes and configurations including shallow or deep draw.
Equipment specification
Features:
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
Heavy-Duty Design – up to 150 tons of holding force when compressing material up to 0.030″ thick
Versatility – ability to control machine speed, combined with deep draw capabilities, make this machine one of the most versatile on the market
Options:
Top or Bottom Servo Plug Drive
Quick-Change Tool Package
Servo Valve Package
Servo Head Adjust
Servo Oven Positioning
Servo Rail Adjustment
Deep Draw Capabilities
Vacuum Pulse Process
Sheet Edge Pre-Heaters
Clamshell Oven
Extruder Synchronization
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs:
| 130FM | 140FM | 152FM | 165FM | |
|---|---|---|---|---|
| Maximum Mold Size (Width x Length) | 30" X 36" 762mm x 914mm | 40" x 42" 1016mm x 1067mm | 52" x 56" 1321mm x 1422mm | 65" x 70" 1651mm x 1778mm |
| Platen Stroke - Top / Bottom* | 7" / 7" 178mm / 178mm | 9" / 9" 229mm / 229mm | 9" / 9" 229mm / 229mm | 9" / 9" 229mm / 229mm |
| Sheet Width | 33" 838mm | 43" 1092mm | 55" 1397mm | 68" 1727mm |
| Oven | Three stops or four stops top and | Four stops or five stops top and bottom | Four stops or five stops top and bottom | Four stops or five stops top and bottom |
| Air Consumption @ 80 psi† | 1.00 scfm | 1.00 scfm | 1.00 scfm | 1.00 scfm |
| Sequential Cycle Control | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives |
