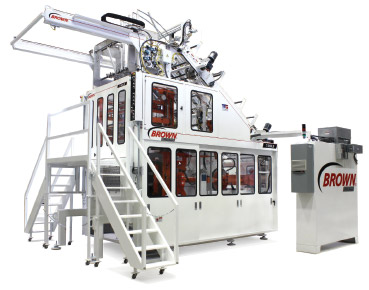

BROWN® T-SERIES LS | LS ELITE HORIZONTAL TRIM PRESSES
SERVO-DRIVEN TO OPTIMIZE YOUR AUTOMATION AND QUICK-CHANGE NEEDS
Brown LS trim press sets the industry standard for speed, accuracy and flexibility. Properly equipped, the LS press will consistently run at speeds of up to 165 CPM. In addition to speed, the servo-driven LS press is configured to slow down to eject and speed up to sync with the cycle time of the thermoformer. This functionality is necessary to incorporate downstream automation and maximize your output. With the quick-change tool mode and drop-away arm features on the Elite Series, changeovers are easily achieved and can be made in 30 minutes or less. Speed, flexibility and automation compatibility all add up to the highest performing trim press on the market.
Partner the LS-Series trim press, Quad Series former, NAS automation and tooling from Brown Machine Group for an unparalleled, integrated turnkey solution.
Equipment specification
Features
Controls – Allen-Bradley HMI and PLC control with Yaskawa motion control
Linear Bearings and Deeper Moving Platen – virtually zero deflection at full tonnage, greater stiffness nearly eliminates tilt in
off-center trim tool load conditionsDrop-Away Arm – ultimate quick-change in 30 minutes or less, provides clearance for trim assembly maintenance without having to remove the trim tooling
Servo Drive and Fly Wheel – achieve greater speeds
Options
Quick-Change Tool Packages
Tool Carts & Die Set Roller/Elevator Systems
EZ-Adjust Stroke (Patented)
Fine Adjust Connecting Arms (Patented)
“Drop-Away” Connecting Arm Release (Patented)
“Neutral Link” Linear Guided Counterbalance (Patented)
Treadle Lift System
Servo-Actuated Treadle System
Quick-Change Feed & Canopy Guides
Servo Ejector with Count/Eject Capabilities
Product Handler Interface
Trim Press & Tool Monitoring
Overhead Mezzanine
65 Kilo Amp Short Circuit Rating
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs
| T-330LS | T-350LS | T-454LS | T-564LS | |
|---|---|---|---|---|
| Maximum Trim Tonnage | 30 tons 267 kn | 30 tons 267 kn | 40 tons 357 kn | 50 tons 446 kn |
| Operating Speeds | Up to 165 spm | Up to 165 spm | Up to 165 spm | Up to 165 spm |
| Minimum Adjustable Stroke | 4.5" 114 mm | 4.5" 114 mm | 4.5" 114 mm | 4.5" 114 mm |
| Maximum Adjustable Stroke | 13.5" 343mm | 13.5" 343mm | 13.5" 343mm | 13.5" 343mm |
| Stationary Platen Opening* Width x Length | 12.50” x 30” 318mm x 762mm | 16.25” x 54” 413mm x 1372mm | 16.25” x 58” 413mm x 1473mm | 20” x 68” 508mm x 1727mm |
| 16.25” X 30” 413mm x 762mm | 20” X 54” 508mm x 1372mm | 20” X 58” 508mm x 1473mm | 16.25” X 68” 508mm x 1727mm | |
| Maximum Sheet Width | 35" 889mm | 55" 1397mm | 59" 1499mm | 69" 1753mm |
| Air Consumption @ 80 psi† | .01 scf Maximum per cycle | .01 scf Maximum per cycle | .01 scf Maximum per cycle | .01 scf Maximum per cycle |
| Quick Tool Change Frame (Side Load) | Standard | Standard | Standard | Standard |
| Elite Series Option | Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position | Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position | Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position | Drop-Away Connecting Arms, Treadle Lift System, Automated Changeover Control Position |
