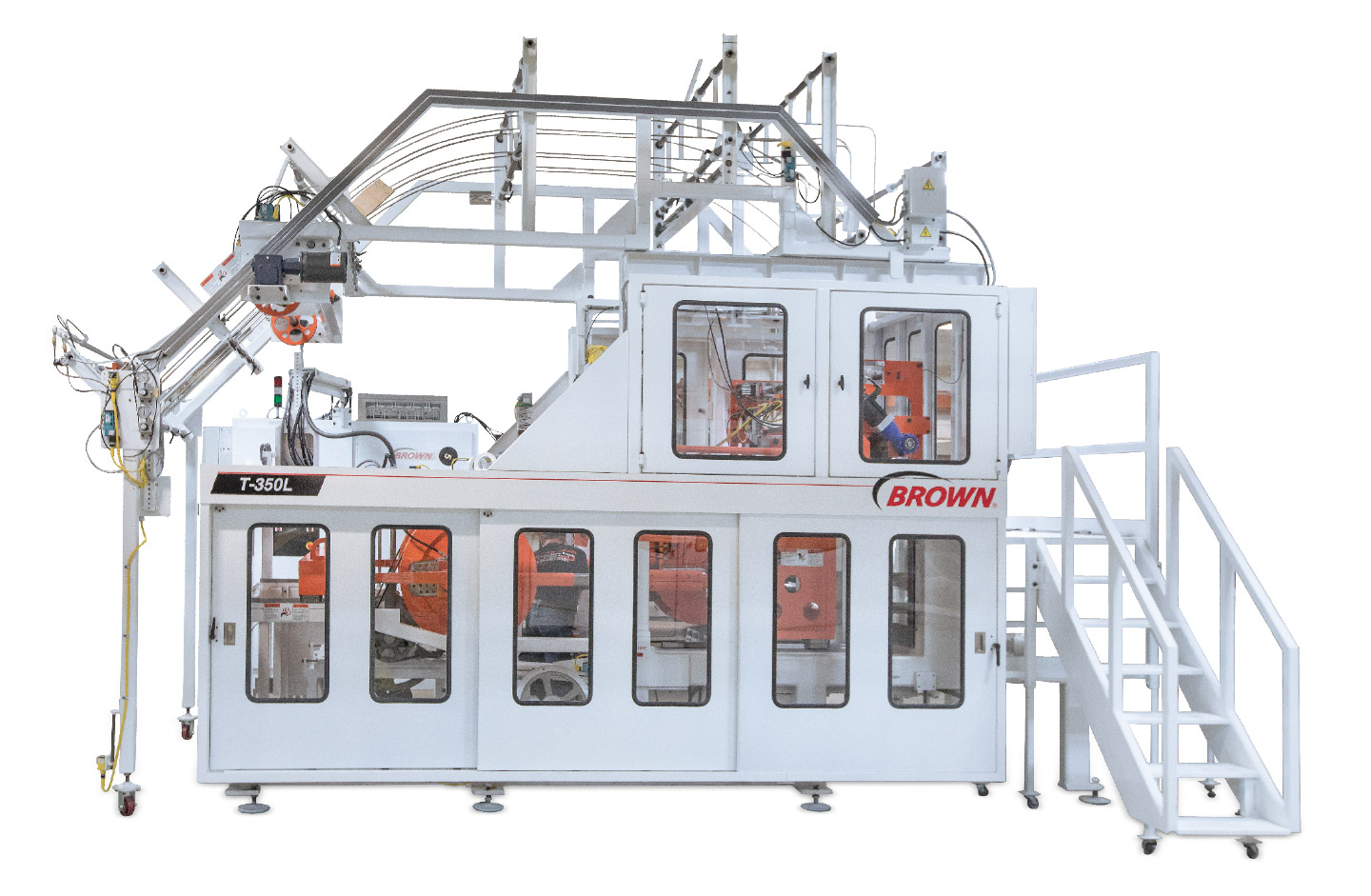

BROWN® T-SERIES L | LP | LDP HORIZONTAL TRIM PRESSES
VERSATILE TRIM PRESS DELIVERS CONSISTENT PERFORMANCE
T-Series Horizontal Trim Press is the industry standard multipurpose press equipped with a multitude of cutting edge features to achieve precise trimming, longer tool life, ease of maintenance and faster changeover times. T-Series Models incorporate precision timed flywheels to the main drive shaft for optimum platen parallelism. The Brown T-Series press offers linear bearings for longer wear life. A side load feature allows tools to be changed from either side which is faster and provides greater plant layout flexibility now and in the future. See the reverse side for sizes and options of these three models:
L – Entry level horizontal trim press – strong consistent performer
LP – Extended platen height with progressive trim promotes increased die life
LDP – Increased platen height combined with extended stroke, ideal for deep draw applications
Equipment specification
Features
Controls – Allen-Bradley HMI and PLC control with Yaskawa motion control
Additional Stroke Length – allows for pre-punch and final trim in deep draw applications
Linear Bearings – precise movement and virtually zero deflection
Taller Moving Platens – provide support to progressive trim tools
Options
Quick-Change Tool Packages
Tool Carts & Die Set Roller/Elevator Systems
EZ-Adjust Stroke (Patented)
Fine Adjust Connecting Arms (Patented)
“Drop-Away” Connecting Arm Release (Patented)
“Neutral Link” Linear Guided Counterbalance (Patented)
Servo Flex Feed or Servo Nip Wheel Feed Systems
Treadle Lift System
Servo Treadle System
Quick-Change Feed & Canopy Guides
Servo Ejector with Count/Eject Capabilities
Product Handler Interface
Trim Press Tonnage & Temperature Monitoring
65 Kilo Amp Short Circuit Rating
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs
| T-130L | T-330L, T-330LP, T-330LDP | T-350L, T-350LP, T-350LDP | T-454L, T-454LP, T-454LDP | T-564L, T-564LP, T-564LDP | |
|---|---|---|---|---|---|
| Maximum Trim Tonnage | 10 tons 89 kn | 30 tons 267 kn | 30 tons 267 kn | 40 tons 357 kn | 50 tons 446 kn |
| Operating Speeds | Up to 145 spm | Up to 145 spm | Up to 145 spm | Up to 145 spm | Up to 145 spm |
| Minimum Adjustable Stroke | 4.5" 114 mm | 4.5" 114 mm | 4.5" 114 mm | 4.5" 114 mm | 4.5" 114 mm |
| Maximum Adjustable Stroke | 13.5" 343mm | 13.5" 343mm | 16.5" 419mm | 16.5" 419mm | 16.5" 419mm |
| Stationary Platen Opening* (Width x Length) | 12.5" x 30" 318mm x 762mm | 12.5" x 30" 318mm x 762mm | 16.25" x 50" 413mm x 1270mm | 16.25" x 54" 413mm x 1372mm | 16.25" x 64" 413mm x 1626mm |
| 20" x 30" 508mm x 762mm | 20" x 30" 508mm x 762mm | 20" x 50" 508mm x 1270mm | 20" x 54" 508mm x 1372mm | 20" x 64" 508mm x 1626mm | |
| Sideload Height - L | 25" 635mm | 25" 635mm | 25" 635mm | 25" 635mm | 25" 635mm |
| Sideload Height - LP, LDP | N/A | 38" 965mm | 38" 965mm | 38" 965mm | 38" 965mm |
| Maximum Sheet Width | 35" 889mm | 35" 889mm | 55" 1397mm | 59" 1499mm | 69" 1753mm |
| Air Consumption @ 80 psi | .01 SCF Max. Per Cycle | .01 SCF Max. Per Cycle | .01 SCF Max. Per Cycle | .01 SCF Max. Per Cycle | .01 SCF Max. Per Cycle |
| Quick Tool Change Frame (Side Load) | Standard | Standard | Standard | Standard | Standard |
