BROWN® V-SERIES V | VP MODELS VERTICAL TRIM PRESSES
HIGH-SPEED, QUICK-CHANGE TRIM PRESS WITH BUILT-IN PRODUCT HANDLING

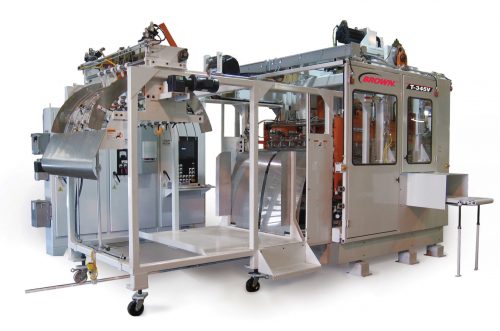

The Brown V and VP model trim presses are vertical acting, matched l punch and die presses. Servo systems control the main drive, feed system, treadle motion, ejector and product lift table which results in high-speed, precise trimming, accurate counting and integrated product handling. The vertical set-up is ideal for parts that don’t stack as well horizontally and fulfills all your pre-punching needs. Both models include side load tool capabilities, and quick-change features within both the treadle and platen areas. Each trim press is designed, engineered, and built for maximum durability and service life, so you can Run with Confidence!
Equipment specification
Features
Controls – Allen-Bradley HMI and PLC control with Yaskawa motion control
Canopy – creates a loop to push a continuous sheet, for accurate trimming
Versatile – pre-punching, scoring or final trim applications
Efficient – Ideally suited for product handling applications
Side Load Tool Capabilities – allows for quick tool changeover
Options
Product Accumulator
Servo NIP Feed or Servo Flex Feed
Dual Discharge Conveyor System
Product Handling Lift Table
Quick-Change Feed & Canopy Guides
Quick-Change Tool Package
Skeleton Web Take-Away System
Servo Driven Ejector
UL, CE, CSA & HSE Approval
International Voltages Available
Specs
| T-330V, T-330VP | T-354V, T-345VP | T-454V, T-454VP | T-564V, T-564VP | |
|---|---|---|---|---|
| Maximum Trim Tonnage | 30 tons 267 kn | 30 tons 267 kn | 40 tons 357 kn | 50 tons 446 kn |
| Operating Speeds | Up to 145 spm | Up to 145 spm | Up to 145 spm | Up to 145 spm |
| Minimum Adjustable Stroke | 4.5" & 6" / 7.5" & 10.5" 114mm & 152mm / 191mm & 267mm | 4.5" & 6" / 7.5" & 10.5" 114mm & 152mm / 191mm & 267mm | 4.5" & 6" / 7.5" & 10.5" 114mm & 152mm / 191mm & 267mm | 4.5" & 6" / 7.5" & 10.5" 114mm & 152mm / 191mm & 267mm |
| Maximum Adjustable Stroke | 13.5" 343mm | 13.5" 343mm | 13.5" 343mm | 13.5" 343mm |
| Stationary Platen Opening (Width x Length) | 20" x 41" 508mm x 104mm | 20" x 61" 508mm x 1549mm | 20" x 67" 508mm x 1702mm | 20" x 77" 508mm x 1956mm |
| Maximum Sheet Width | 34" 867mm | 54" 1372mm | 58" 1473mm | 68" 1727mm |
| Air Consumption @ 80 psi * | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle |
| Feed System | Servo Flex or Nip Wheel Standard | Servo Flex or Nip Wheel Standard | Servo Flex or Nip Wheel Standard | Servo Flex or Nip Wheel Standard |
| Quick Tool Change Frame (Side Load) | Standard | Standard | Standard | Standard |
