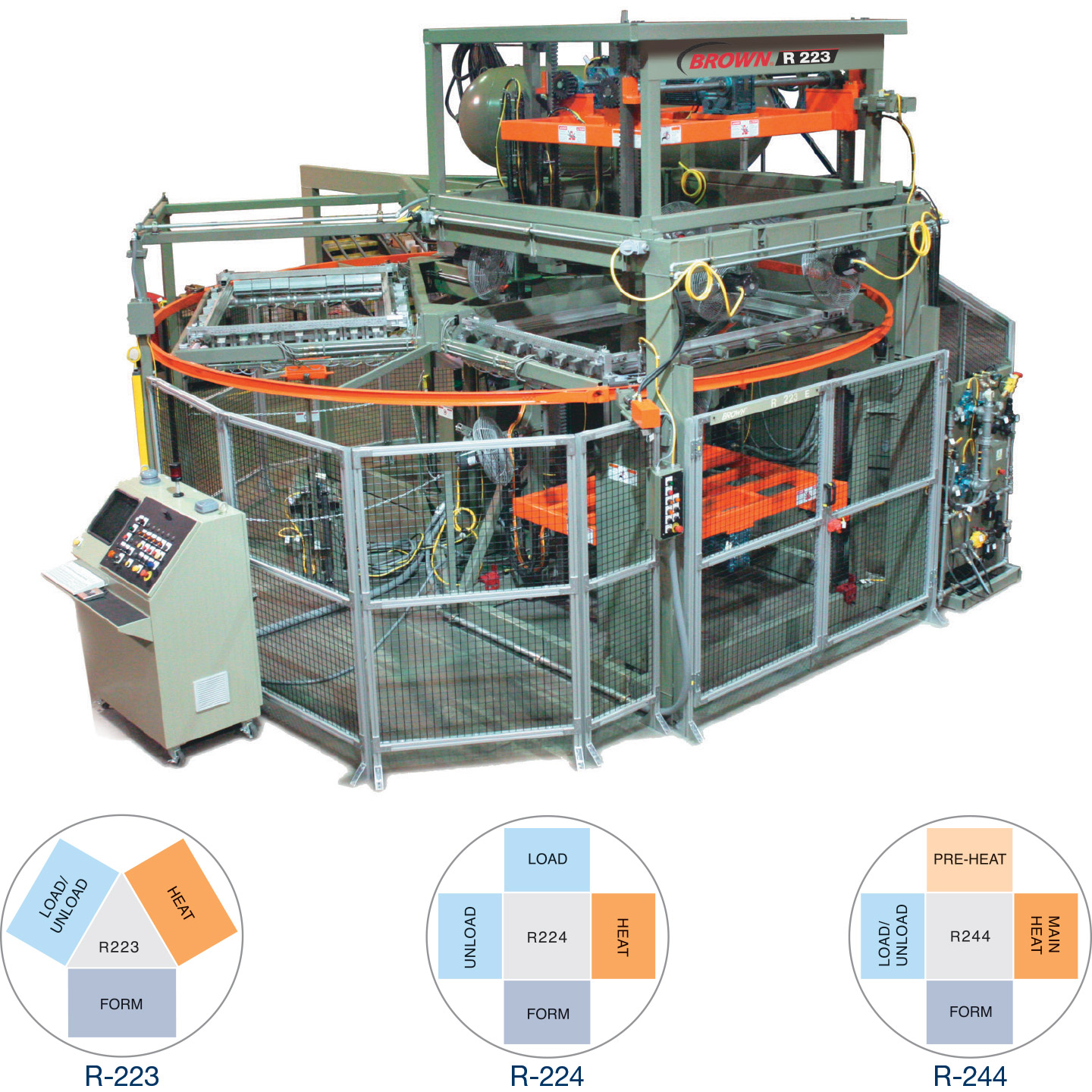

BROWN® RV-SERIES VACUUM ROTARY THERMOFORMERS
HEAVY GAUGE - HIGH PRODUCTION CAPACITY
Brown offers the most advanced and reliable multi-station rotary equipment on the market. The R-Series is ideal for large products made with heavy gauge materials. The rotary system achieves higher production output by loading, heating, forming and unloading simultaneously. Brown provides the ultimate direct drive and closed-loop motion-controlled platen systems, this insures precise and reliable platen parallelism for superior stable process performance. Combined with energy efficient infrared ovens and the latest quick-change features, Brown delivers unsurpassed durability, longevity and return on your investment.
Equipment specification
Features
Heaviest Center Wheel, Slewing Bearing and Bull Gear Assembly
Direct Drive Platens
Closed Loop Multi-Axis Motion Control
Machine Designed for Future Upgrades
Mold Sizes – from 3′ x 4′ to 12′ x 24’+
Platen Speed – 10″ or 12″ per second
Platen Strokes – from 15″ to 100″+
High Output Part Cooling System
Ideal Oven Zoning – Ceramic Elements
Solid State Relays Oven Control
Oven Fire Protection – Air Jet
Point IR Sheet Temperature Monitoring
Aluminum Extrusion Clamp Frames
Sheet Load and Part Unload Lift Table Systems
Allen-Bradley PLC and PC Interface Machine Controls
HMI Touch Screen with Intuitive Screens
Infinite Product Recipe Storage and Recall
Air-Conditioned Main Electrical Panel(s)
Options
Optional Oven Elements – Quartz, Panel or Halogen
Heater Control Modules (HCM) – Highest Diagnostics
Oven Fire Protection – Teflon Oven Curtain System
AL-90 Quick-Change Clamp Frames
Articulating and Multi-Zoned Clamp Frames
Full Sheet Temperature Scanning Systems
Interior Oven Lighting and Viewing Window(s)
Motorized Sheet Sag Tracking Oven Feature
Servo Regulated Valving with Part Recipe Recall
Custom Load/Unload Automation – Robotics
Vast Process Sensing and Trending Solutions
Quick-Change Tooling Systems
Latest Safety Scanners with Muting Functionality
Ancillary Integrated Equipment – MTC Units, Trimming, Granulating, etc.
UL, CE, CSA & HSE Approvals Available
International Voltages Available
Bi-Lingual Labels and HMI Screens Available
