BROWN® LR SERIES LIP ROLLERS
MAINTAIN CONSISTENT LIP ROLL FOR OPTIMUM FIT AND FINISH

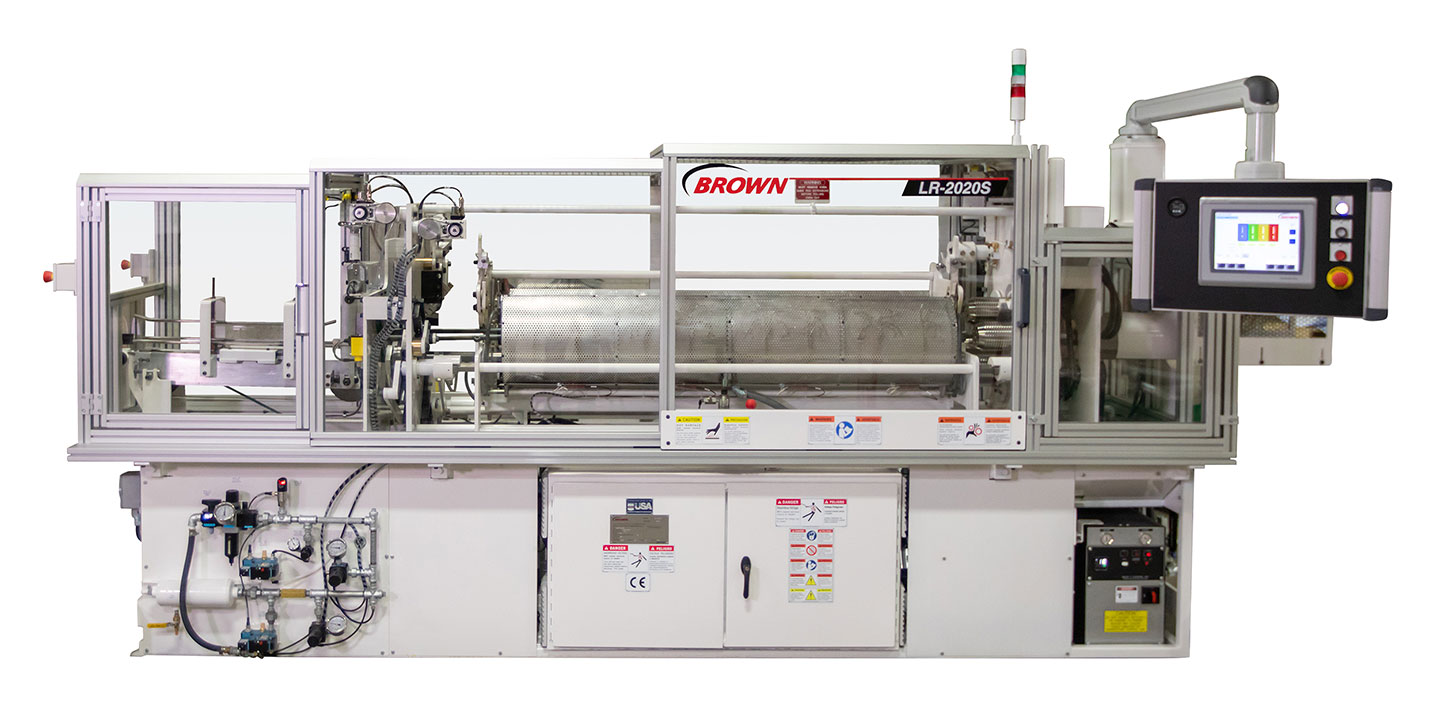

Brown offers lip rollers for product diameters ranging from 1.75 inches (44mm) up to 11 inches (280mm) which operate at peak speeds up to 3,500 parts per minute. So, no matter what your application, we have a solution for you. As you expect from Brown, our lip rollers are designed to safely maximize production and minimize downtime. For example, the LR-2020S is designed with servo drives controlled through the HMI allowing recipe storage for your range of products. Furthermore, the machine is easily adapted for left- or right-hand operation providing additional flexibility for your plant layout.
Since you spend less time maintaining, you’ll get more production.
Equipment specification
Features:
Versatile – various models can roll a full range of materials including Polystyrene, Polypropylene, APET, Polyethylene, and more
Option:
Servo Driven Controls through HMI
Full Enclosed Guard Package
Air Regulator and Nozzle
Independent Infeed Conveyor
Product Detection Monitoring
Bottom Driven Roller
Infrared Temperature Sensor
Metered Silicone Applicators
Water Cooled Top Guide
Screw & Crowd Roller Position Indicators
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs：
| LR-2000 | LR-2000 MAGNUM | LR-2000S | LR-2000S-S | LR-2020S | |
|---|---|---|---|---|---|
| Direction | Left or Right hand operation | Left or right hand operation | Left or Right hand operation | Left or Right hand operation | Left or Right hand operation |
| Number of Screws | 3 or 4 | 4 | 3 or 4 | 3 or 4 | 3 or 4 |
| Screw Thread Length | 4" 102mm | 10" 254mm | 6" 152mm | 18" 457mm | 6" 152mm |
| Oven Length | 32" 813mm | 32" 813mm | 64" 1626mm | 64" 1626mm | 64" 1626mm |
| Oven Control Zones | Two | Two | Four | Four | Four |
| Product Diameters | 3 Screw Configuration 1.75" to 3" 44mm to 76mm 4 Screw Configuration 2" to 5.5" 51mm to 140mm | 4 Screw Configuration 5" to 11" 127mm to 280mm | 3 Screw Configuration 1.75" to 3" 44mm to 76mm 4 Screw Configuration 2" to 5.5" 51mm to 140mm | 3 Screw Configuration 1.75" to 3" 44mm to 76mm 4 Screw Configuration 2" to 5.5" 51mm to 140mm | 3 Screw Configuration 1.75" to 3" 44mm to 76mm 4 Screw Configuration 2" to 5.5" 51mm to 140mm |
| Product Rate (ppm) | 500 to 3,500 ppm | 500 to 3,500 ppm | 500 to 3,500 ppm | 500 to 3,500 ppm | 500 to 3,500 ppm |
