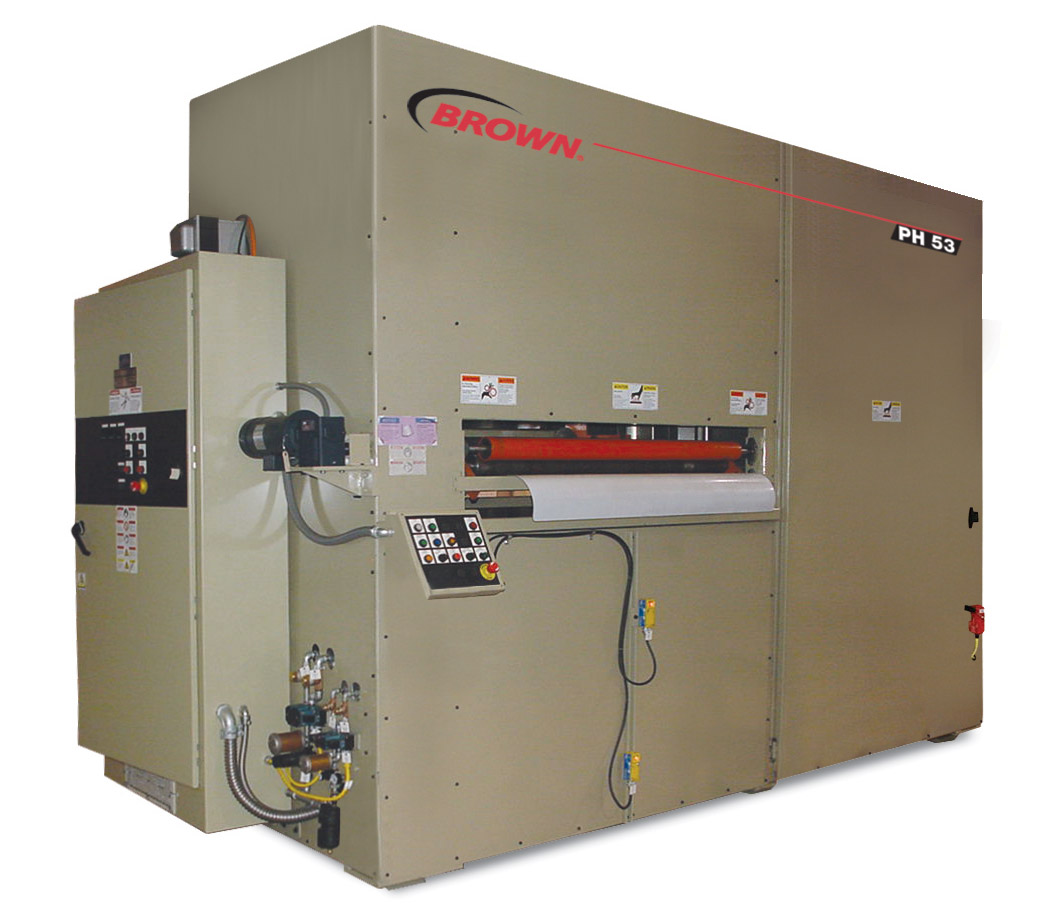

BROWN® PH-SERIES PRE-HEATER OVEN
LET MATERIAL EXPAND NATURALLY TO ELIMINATE DISTORTION AND REDUCE SAG
Pre-Heater Ovens allow material to expand naturally prior to entering the pin chain of the thermoformer, eliminating distortion within the sheet and reducing sag. Our Pre-Heater Ovens are designed to utilize minimal floor space when positioned at the infeed end of the thermoformer and are equipped with a variety of user friendly features.
An easy, straight-through sheet thread design with variable speed rollers moves the sheet vertically through the oven. This promotes even heating from both sides and synchronizes the heated material with the thermoformer. A quartz panel oven with multiple control zones provides precise heating of the right, center and left sides of the sheet. The oven is mounted on a roll away carriage for thread-up, maintenance and the ability to remove the heat source, making our Pre-Heater Ovens a complete stand-alone solution.
Equipment specification
Feature:
Horizontal Sheet Feeder – easy start-up
Auto Oven Out – prevents fires and burns
Free State Material Handling – allows sheets to expand naturally and get the core hotter faster for quicker processing speeds
Option:
Oven Pyrometer
Roll Stand with Sheet Payout System
Extrusion Dancer Bar
Air Conditioned Electrical Cabinets
International Voltages Available
CE, CSA & HSE Approvals
Specs:
| PH-33 | PH-43 | PH-53 | PH-58 | |
|---|---|---|---|---|
| Max Sheet Width | 33” 838mm | 43” 1092mm | 53” 1346mm | 58” 1473mm |
| Oven Size Width x Length | 33” x 80” 838mm x 2032mm | 43” x 80” 1092mm x 2032mm | 53” x 80” 1346mm x 2032mm | 58” x 116” 1473mm x 2946mm |
| Oven Configuration | Single oven quartz panel | Single oven quartz panel | Single oven quartz panel | Single oven quartz panel |
| Oven Carriage | Side roll away | Side roll away | Side roll away | Side roll away |
| Feed Rolls | Variable speed driven | Variable speed driven | Variable speed driven | Variable speed driven |
| Machine Controls | PLC processor with push button controls | PLC processor with push button controls | PLC processor with push button controls | PLC processor with push button controls |
| Oven Controls | 3 zone for right/center/left side control | 3 zone for right/center/left side control | 3 zone for right/center/left side control | 3 zone for right/center/left side control |
| Thread-up Feature | Easy straight through thread-up feature | Easy straight through thread-up feature | Easy straight through thread-up feature | Easy straight through thread-up feature |
| Unwind Stand | Available | Available | Available | Available |
| Avg Operational Amps | 120 amps | 150 amps | 235 amps | 355 amps |
