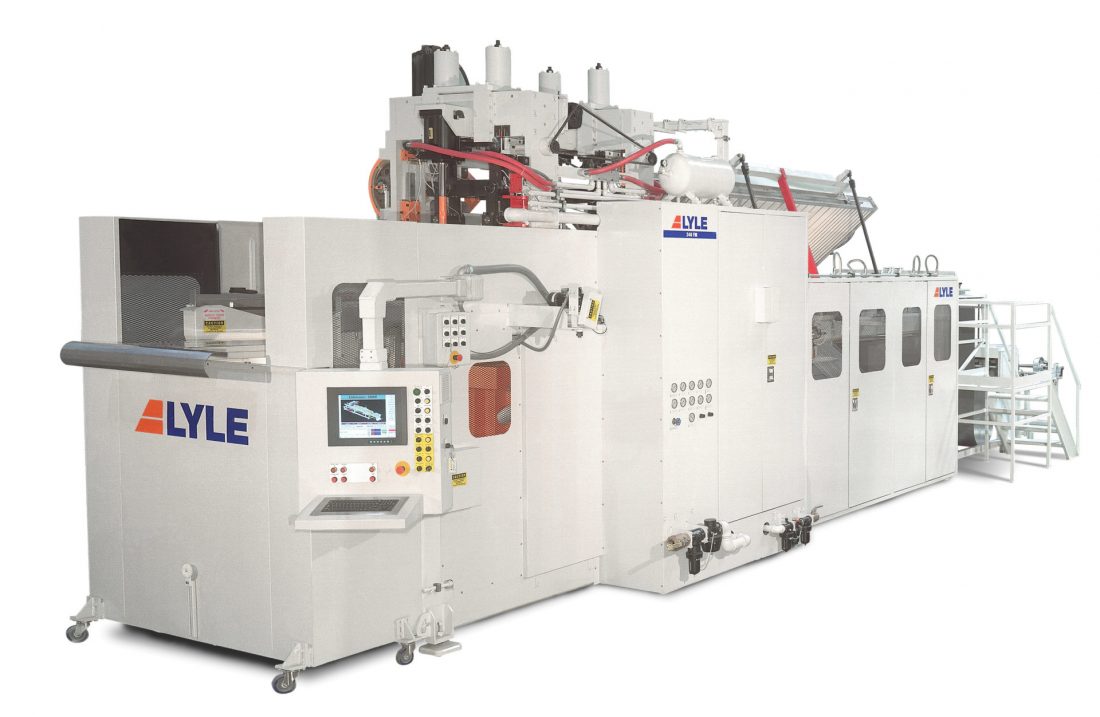

LYLE® 200-SERIES THERMOFORMERS
HIGH-OUTPUT THERMOFORMER DESIGNED FOR 2-STAGE FORMING APPLICATIONS
The Lyle 200-Series is the industry standard for forming CPET products that require a high tonnage two-stage forming process. The dual stage valve package provides independent control of the two-stage forming process and can be configured through the PLC to operate in conventional mode for non-CPET applications, such as PS, PET, PP and more. The unique twin station design also allows for extended mold lengths when running commonly used plastic materials for high production runs. The heavy-duty servo-driven twin forming station is designed to ensure precise, well-defined parts for difficult-to-form materials while optimizing your process window.
Equipment specification
Feature：
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
2-Stage Forming – dual station servo platen drives and integrated twin form stations enhance front-to-back clamping force, resulting in well-defined parts made with difficult-to-form materials
Dual Stage Valve Package – independent control of 2-stage forming process controlled through the PLC
Oven – multiple zone ovens designed specifically for 2-stage processing ensure optimal end-use performance
Option:
Quick-Change Tool Package
Dual Circuit Servo Valve Package
Servo Head Adjust
Servo Oven Positioning
Servo Rail Adjustment
Sheet Edge Pre-Heaters
Extruder Synchronization
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs:
| 230CPET | 240CPET | |
|---|---|---|
| Maximum Mold Size (Width x Length) | 30" x 60" 762mm x 1524mm | 40" x 80" 1016mm x 2032mm |
| Platen Stroke - Top / Bottom* | 7" / 7" 178mm / 178mm | 7" / 7" 178mm / 178mm |
| Maximum Forming Pressure | 100 psi | 100 psi |
| Sheet Width | 33" 838mm | 43" 1092mm |
| Oven | Four stops top and bottom | Four stops top and bottom |
| Air Consumption @ 80 psi† | 1.00 scfm | 1.00 scfm |
| Sequential Cycle Control | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives |
