LYLE® FMT-SERIES THERMOFORMERS

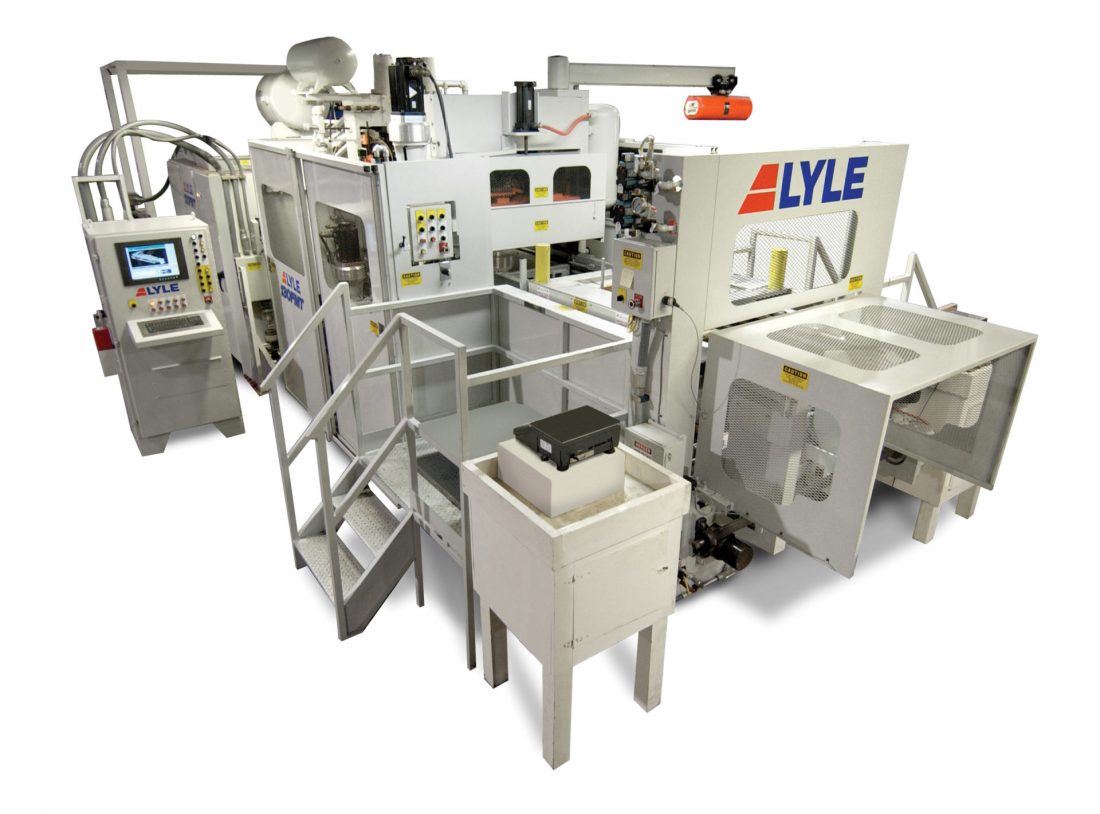

ALL-IN-ONE FORM AND TRIM THERMOFORMER
The FMT-Series offers versatility and performance with rugged, reliable thermoform and trim capabilities in one ideal for point-of-purchase blister packs, medical trays and food packaging. Powerful and precise servo platen drives, roll unwind, oven, form station, steel-rule die trim station and scrap winder make these machines a perfect choice for the custom former. In addition, tooling is easy to change, making the FMT a great choice for fast changeovers.
Equipment specification
Feature：
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
High-Tonnage Trim Station – servo wedge trim delivers up to 150 tons of force with minimal deflection and, combined with servo rule-positioning, ensures precise, repeatable trimming
Versatility – configure with different stations for form, pre-punch, trim or stack; deep draw capabilities; and different tonnages
Option：
Top or Bottom Servo Plug Drive
Quick-Change Tool Package
Heated Plug and Die Circuitry
Pre-Punch or Burn Station
150 Trim Force Station
Servo Trim Station
(X-Y-W Arrangement)
Upstacker or Downstacker Systems
Servo Valve Package
Sheet Edge Pre-Heaters
Servo Rails Adjustment
Roll Lift
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs:
| 125FMT | 130FMT | 140FMT | 152FMT | |
|---|---|---|---|---|
| Maximum Mold Size (Width x Length) | 25" x 25" 635mm x 635mm | 30" x 36" 762mm x 914mm | 40" x 40" 1016mm x 1016mm | 52" x 52" 1321mm x 1321mm |
| Form Platen Stroke - Top / Bottom* | 7" / 7" 178mm / 178mm | 7" / 7" 178mm / 178mm | 9" / 9" 229mm / 229mm | 9" / 9" 229mm / 229mm |
| Trim Platen Stroke - Top / Bottom* | 7" / 4" bottom 178mm / 102mm bottom | 7" / 4" bottom 178mm / 102mm bottom | 9" / 6" bottom 229mm / 152mm bottom | 9" / 6" bottom 229mm / 152mm bottom |
| Trim Force | 72 tons 642 kn | 72 tons to 100 tons 642 kn to 892 kn | 150 tons 1339 kn | 150 tons 1339 kn |
| Maximum Forming Pressure | 100 psi | 100 psi | 100 psi | 100 psi |
| Sheet Width | 28" 711mm | 33" 838mm | 43" 1092mm | 55" 1397mm |
| Oven | Three stops or four stops top and bottom | Three stops or four stops top and bottom | Four stops or five stops top and bottom | Four stops or five stops top and bottom |
| Air Consumption @ 80 psi† | 1.00 scfm | 1.00 scfm | 1.00 scfm | 1.00 scfm |
| Sequential Cycle Control | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives | Integrated Mitsubishi PLC / Drives |
