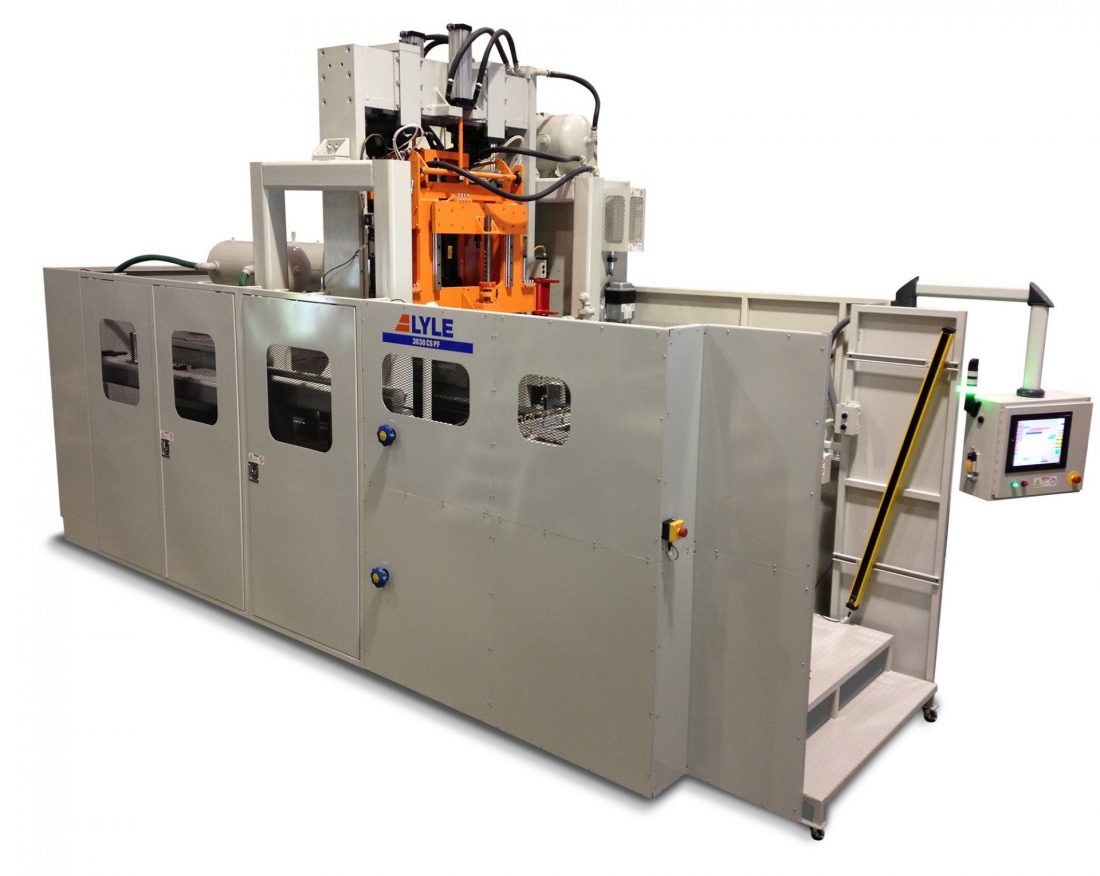

LYLE® LABFORM PROTOTYPING THERMOFORMERS
GET TO MARKET FASTER – FOR LESS WITH THE LABFORM THERMOFORMER
The LabForm is ideal for evaluating the form, fit and function of your products prior to tool production, as well as producing samples for market tests. The high pressure and vacuum forming process allows you to obtain desired distribution characteristics replicating your full-scale production environment in a single or multi-cavity tool.
Save your valuable production machine capacity for larger runs by prototyping with this cut sheet laboratory sized thermoformer.
Equipment specification
Feature：
Heavy-Duty Design – capable of 100 psi or higher form air pressure with minimal deflection
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
PLC Controlled Ovens – individually controlled zones with thermocouple feedback; top and bottom quartz heating elements
Servo Sheet Car Drive – smooth consistent motion
Option：
Top or Bottom Servo Plug Drive
Servo Platen Drives
Servo Shut Height Adjustment
Servo-Controlled Valves
International Voltages
Specs：
| 3030CSPF | |
|---|---|
| Maximum Mold Size (Width x Length) | 30" x 30" 762mm x 762mm |
| Platen Stroke - Top / Bottom | 12" 305mm |
| Form Pressure Rating @ 100 psi | 45 tons 400 kn |
| Sheet Width | 32" 810mm |
| Oven | One Stop Top and Bottom |
| Air Consumption @ 80 psi† | 1.00 scfm |
| Sequential Cycle Control | Integrated Mitsubishi PLC / Drives |
