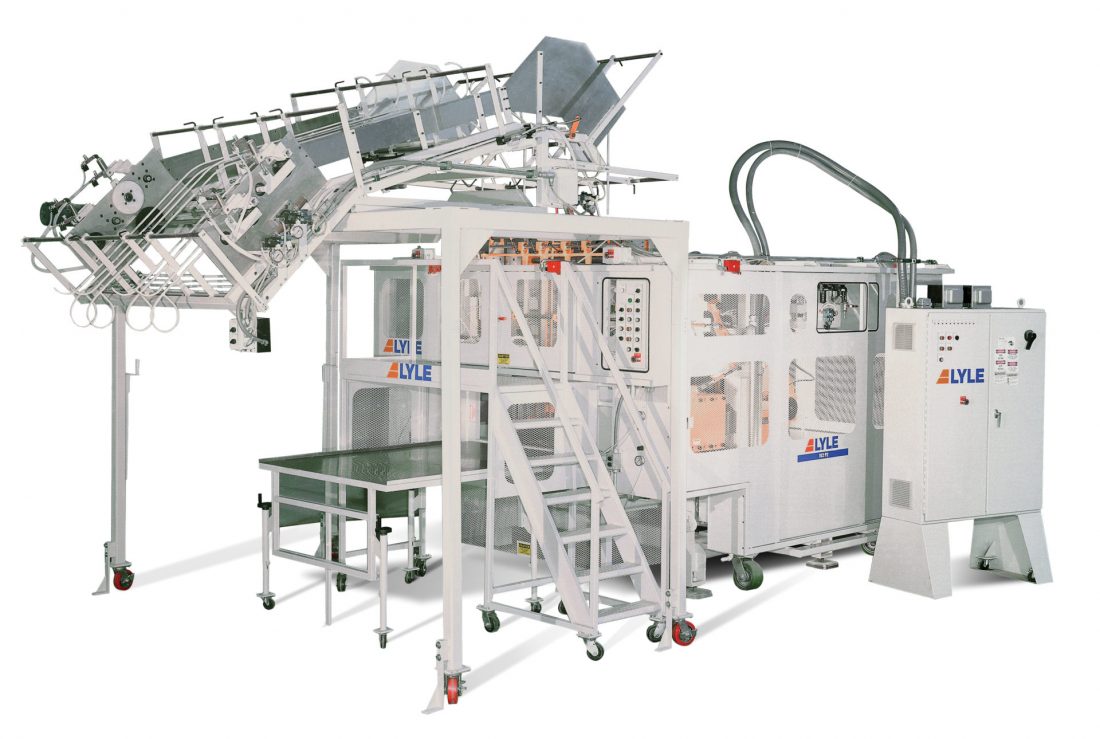

LYLE® P2-SERIES HORIZONTAL TRIM PRESSES
EXPECT DEPENDABLE SERVICE AND EASE OF OPERATION FROM THIS RUGGED TRIM PRESS
The P2-Series horizontal trim press offers high-speed trim operations and a multitude of features to achieve trim accuracy, extended tool life and ease of maintenance. This versatile trim press is used to trim a wide variety of parts, from shallow to deep draw and from virtually any plastic material. The servo feed system provides accurate positioning while the press is in operation and is controlled through the PLC. The P2-Series comes standard with linear bearings promoting extended tool life and side load capabilities for quick and easy changeover of your trim tooling. You can expect years of service and dependability from this rugged trim press.
Equipment specification
Feature：
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
Servo Fine Tuning – the servo feed system allows infinite positioning for trimming accuracy and can be adjusted while the press is in operation
Linear Bearing Guide System – provides precise trimming of difficult-to-cut materials and reduces trim die maintenance
Dual Flywheel and Dual Connecting Arm – for enhanced platen stability and provide superior slow- or high-speed operation
Option：
Quick-Change Tool Package
Tool Carts & Die Set Roller/Elevator Systems
Fine Adjust Connecting Arms
Quick-Change Feed & Canopy Guides
Servo Ejector with Count and Eject Capabilities
High-Speed Platen Counterbalance
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs：
| 130P2 | 140P2 | 152P2 | 165P2 | |
|---|---|---|---|---|
| Maximum Trim Tonnage | 15 tons 134 kn | 30 tons 267 kn | 30 tons 267 kn | 40 tons 357 kn |
| Operating Speeds | Up to 145 spm with counterbalance | Up to 145 spm with counterbalance | Up to 145 spm with counterbalance | Up to 145 spm with counterbalance |
| Minimum Adjustable Stroke | 3" 76mm | 3" 76mm | 3" 76mm | 3" 76mm |
| Maximum Adjustable Stroke | 13.5" 343mm | 13.5" 343mm | 16.5" 419mm | 16.5" 419mm |
| Stationary Platen Opening* (Width x Length) | 12.25" x 30.5" 311mm x 775mm | 12.25" x 40.5" 311mm x 1029mm | 16.5" x 52.5" 419mm x 1334mm | 16.5" x 65.5" 419mm x 1664mm |
| Maximum Sheet Width | 34" | 44" | 56" | 69" |
| Air Consumption @ 80 psi† | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle |
| Quick Tool Change Frame (Side Load) | Standard | Standard | Standard | Standard |
