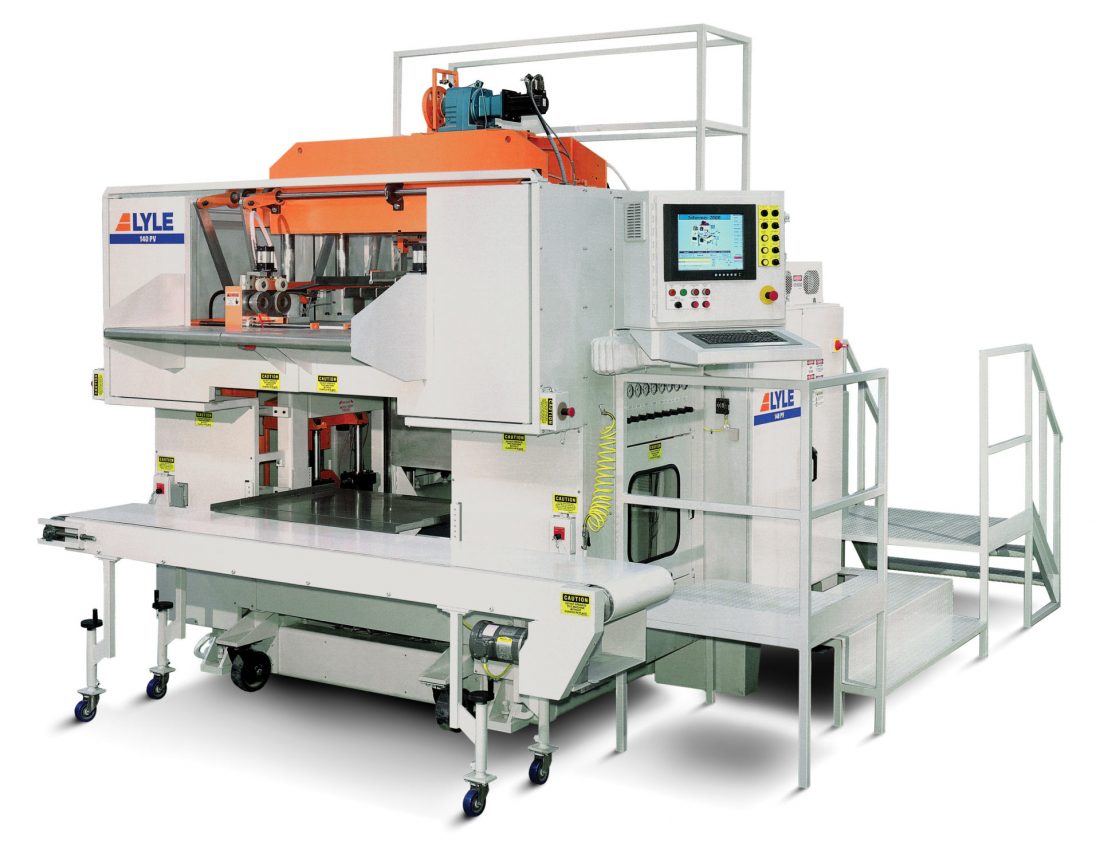

LYLE® PV | PVT-SERIES VERTICAL TRIM PRESSES
TRIM VERTICALLY STACKED PRODUCTS WITH PRECISION AND EFFICIENCY
The PV and PVT-Series vertical trim press is a versatile machine that can be used for pre-punching, scoring, or final trim applications. The vertical set-up is perfect for parts that don’t stack as well horizontally, and provides the added benefit of accurate counting and product handling. The unique servo-driven nip feed ensures accuracy and properly locates parts for trimming while the pull-down trim design enables the press to handle the heaviest cutting requirements. Combined with quick tool change capabilities and PLC control of all functions, the PV-Series trim press delivers precision and efficiency, so you can Run with Confidence!
Equipment specification
Feature：
Versatile, Precise Controls – standard with Informer™ series Mitsubishi control system
Easy Access to Tools – allows quick tool change for efficient operation
Versatile – pre-punching, scoring or final trim applications
Efficient – ideally suited for product handling applications
Precise – exclusive pull-down trim design utilizing precision linear bearings to ensure optimum parallelism
Option：
Product Accumulator
Versa-Servo Feed
Servo Driven Ejector
Product Handling Lift Table
Quick-Change Feed Guides
Quick-Change Tool Package
Skeleton Web Take-Away System
Pressure Plate Scoring System (PVT)
UL, CE, CSA & HSE Approvals
International Voltages Available
Specs：
| 130PV, 130PVT | 140PV, 140PVT | 152PV, 152PVT | 165PV, 165PVT | |
|---|---|---|---|---|
| Maximum Trim Tonnage | 15 tons 133 kn | 30 tons 267 kn | 35 tons 312 kn | 50 tons 446 kn |
| Operating Speeds | Up to 100 spm | Up to 100 spm | Up to 100 spm | Up to 100 spm |
| Machine Stroke | 9" 229mm | 9" 229mm | 9" 229mm | 9" 229mm |
| Stationary Platen Opening* (Width x Length) | 13.5" x 30.5" 343mm x 775mm | 13.5" x 40.5" 343mm x 1029mm | 16.5" x 52" 419mm x 1321mm | 16.5" x 65" 419mm x 1651mm |
| Maximum Sheet Width | 34" 867mm | 44" 1118mm | 56" 1422mm | 69" 1753mm |
| Air Consumption @ 80 psi† | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle | .01 scf maximum per cycle |
| Feed System | Nip Wheel Standard | Nip Wheel Standard | Nip Wheel Standard | Nip Wheel Standard |
