375 SERIES CYLINDERS


Installation Guidelines - PD375.doc

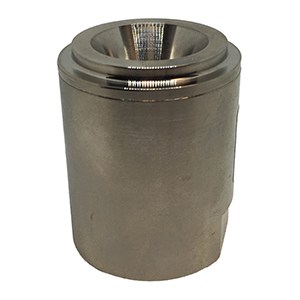

PD375

  • Mounts in counter-bore, with clips (PD375C LP)

  • Rated at 1,800 lbs. (static)

  • Size: 1 5/8” Dia. x 2.030”H

  • Rated temperature to 450° F
    *A higher temperature cylinder also available, please call for details.

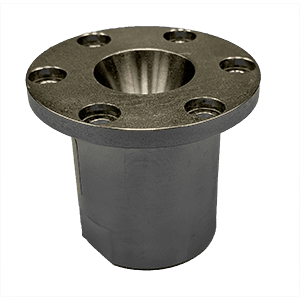

PD375F
  • Identical to shouldered Mini Cylinder Lock with integral flange added for surface mounting

  • Mounts with six #10 buttonhead screws

  • Rated at 1,800 lbs. (static)

  • Size: 1 5/8” Dia. x 2.030”H x 2 3/8” Flange

  • Rated temperature to 450° F
    *A higher temperature cylinder also available, please call for details.

PD375HT
PD375FHT
PD375EXHT
PD375FEXHT
