250 KNOBS


Installation Guidelines - PD250.doc

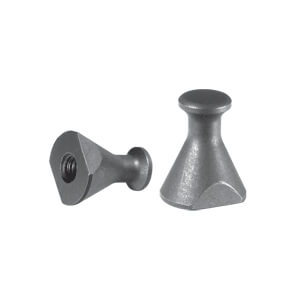

PD250SA

Overall Size: 0.5343″ H x 0.437″ Diameter. Center tapped with #8-32.

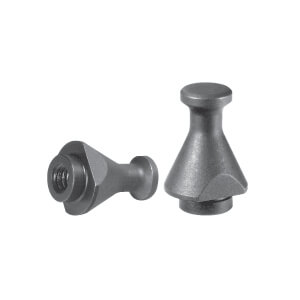

PD250T
Overall Size: 0.643″ H x 0.437″ Diameter. Location boss 0.2805″ Diameter x 0.100″ H. Center tapped with #8-32.

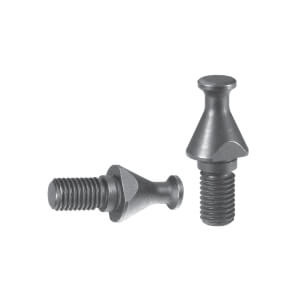

PD250STD4
Overall Size: 1.043″ H x 0.437″ Diameter. Location Boss 0.2805″ Diameter x 0.100 High. 1/4×28 Stud x 0.500 L.
