SEGEN QUICK CHANGE

Best-of-breed to Best-in-class Tooling Tech Group has combined a growing number of industry-leading automation and tooling brands, pooling their collective knowledge and experience to support our efforts to design and build the most innovative automation and tooling solutions for our customers’ greatest manufacturing and product challenges. Tooling Tech Group is the largest provider of tooling in the United States with 600+ employees, 12 modern facilities and over 1-million square feet of manufacturing space across five states. We build custom tooling for a variety of applications including thermoforming, compression molding, blow molding, die casting, and stamping, as well as secondary equipment and automated solutions for these applications. We have experience in many industries including automotive, appliance, lawn and garden, agricultural, aerospace, marine, and off-road vehicle industries, among others.

500 SERIES


Installation Guidelines - PD500.doc

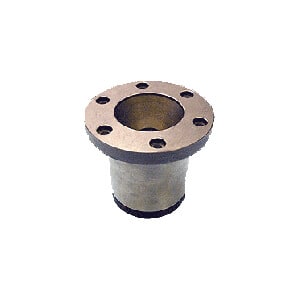

PD500

  • Rated to 25,000 lbs. of static holding force with PD500STD.

  • Rated to 50,000 lbs. of static holding force with PD500STDHS.

  • Size: 5″ H x 4″ Dia.

  • Flange Diameter: 5.75″

  • Temperature rated to 300°F

  • Mounts with six #3/8-16 socket head cap screws

  • 11 lbs.
