438 SERIES CYLINDERS


Installation Guidelines - PD438.doc

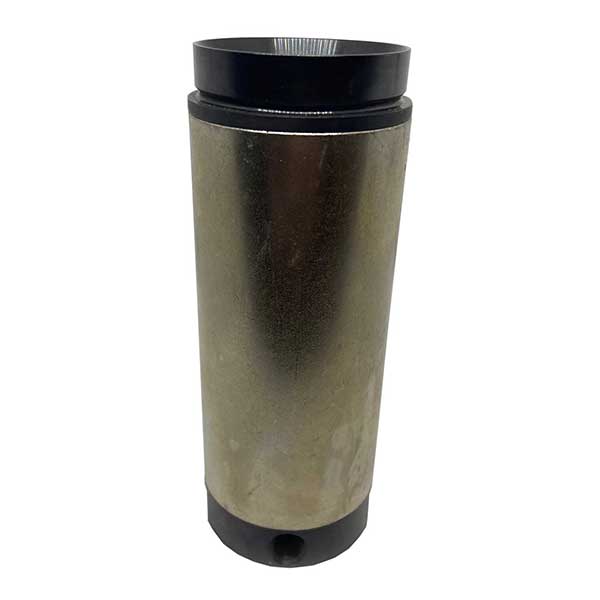

PD438

  • Shouldered design suitable for most installations

  • Standard version temperature 300°

  • Rated at 2,700 lbs. (static)

  • Size: 4.875″ H x 1.875″ Dia.

  • Available in High Temperature version 400°

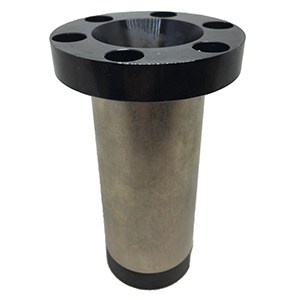

PD438F
  • Identical to Cylinder Lock – Shouldered with integral flange added for surface mounting

  • Standard version temperature 300°

  • Size: 4.875″ H x 2.875″ Dia.

  • Six counter-bored holes for 5/16″ bolts

  • Rated at 2,700 lbs. (static)

  • Available in High Temperature version 400°

PD438V
PD438FV
PD438C
PD438CF
PD438CV
PD438CFV
