438 SERIES KNOBS


Installation Guidelines - PD438.doc

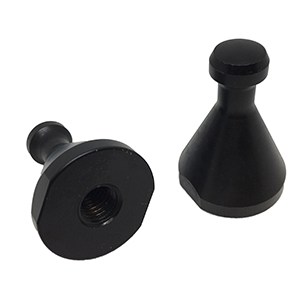

PD438SA

  • Mates with all Model 438 Cylinder Locks

  • 2.112″ H (overall) x 1.463″ Dia.

  • Center tapped with 1/2-13

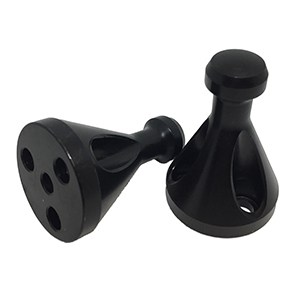

PD438CB
  • Mates with all Model 438 Cylinder Locks

  • Counter-Bored holes allow knob to be fastened from the top for face-mounting

  • 2.112″ H x 1.463″ Dia.

  • Three counter-bored holes for 1/4″ cap screws with .250″ location hole

PD438T
PD438STD
PD438SXP
PD438CLR
PD438SADPT
PD438BX
PD438KIT
